Overview

Overview

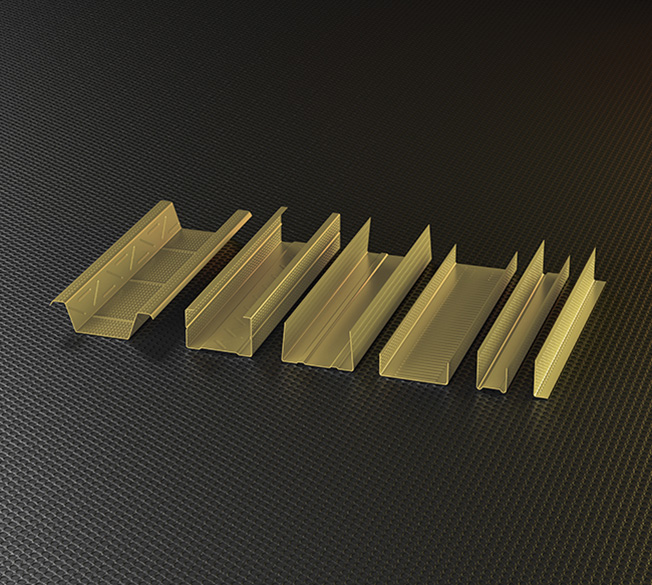

Introducing Gypframe® Xpert – a metal frame system designed to bring strength, speed, and reliability to your projects. Whether you're working on ceilings or partitions, its superior durability and higher load-bearing capacity ensure a sturdy and long-lasting structure. Additionally, with faster installation and a cost-effective design, it helps you build smarter without compromising on quality.

Backed by Gypframe’s trusted assurance, it’s the perfect foundation for spaces built to last.

Gypframe® Xpert Offers

Prima Feature Icon

Gypframe® Brand Assurance

Prima Feature Icon

Economical

Strength & Durable

Faster Installation

Superior Corrosion Resistant

Higher Load Bearing Capacity

Products

Products

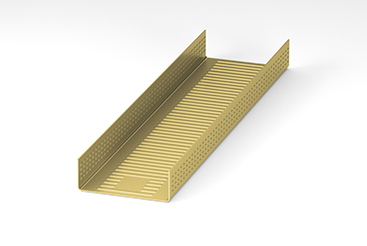

GypFrame® Xpert Ceiling Section

Thickness in (mm)
0.4

Dimensions in (mm)
76x42x20x2440
76x42x20x3660

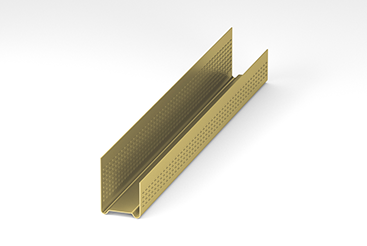

GypFrame® Xpert Intermediate Channel

Thickness in (mm)
0.6

Dimensions in (mm)
45x15x15x2440
45x15x15x3660

GypFrame® Xpert Perimeter Channel

Thickness in (mm)
0.4

Dimensions in (mm)
30x21x20x2440
30x21x20x3660

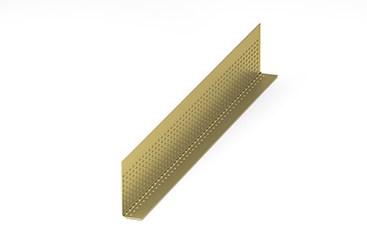

GypFrame® Xpert Ceiling Angle

Thickness in (mm)
0.4

Dimensions in (mm)
25x10x2440
25x10x3660

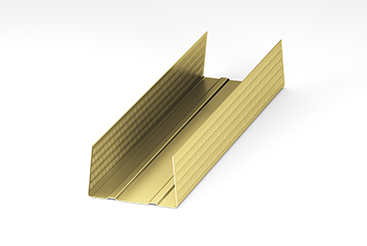

GypFrame® Xpert Floor & Ceiling Channel

Thickness in (mm)
0.45

Dimensions in (mm)
50x30x30x3660

GypFrame® Xpert

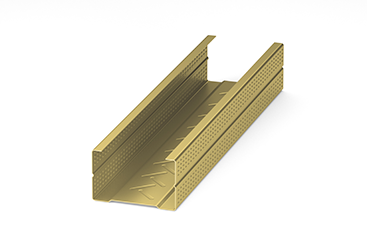

Stud

Thickness in (mm)
0.45

Dimensions in (mm)
48x30x31x3660
48x30x31x3050

GypFrame® Xpert Video

Learn More About GypFrame® Xpert
